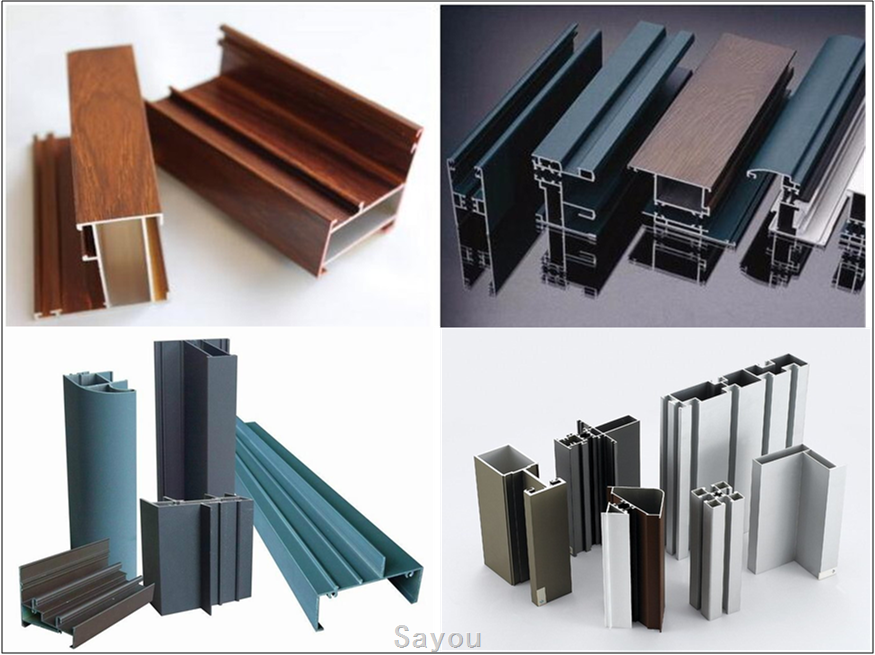

ALUMINUM SECTION
| Item | aluminum profile |
| Material | Aluminum Alloy 6063, 6063A, 6060, 6061,6005 |
| Temper | T3,T4, T5, T6,T8, etc. |
| Standard | GB5237.1-2008 Chinese Standard |
| Thickness | General profiles thickness: 0.8 - 5.0 mm; |
| Anodized protection thickness: 8 - 25 μm; | |
| Powder coating color thickness: 60 - 80 μm. | |
| Length | 5.8m or 6m per piece. Customized request available |
| Shape | square, flat, round, hollow, oval, triangle, U-profiles, L-profiles, T-profiles, H-profiles, customized available |
| Surface available | Mill finish, Anodized, Powder Coating, Wooden transferring , 3D wood grained, wood powder coating , electrophoresis, PVDF, polished ,anodized brushed,and so on. |
| Color | Metal silver, champagne, black, white, customized request available |
| Packing | EPE,Kraft Paper,Protect film,Shrink film,Wooden frame,Iron Car |
| Application | windows and doors, curtain walls, glass wall, furniture, kitchen, LED strip, transportation rail, vehicles, motor housing, machine, tent, solar panel. Industrial profile,fencing, shower cabins,Decoration profile,etc |
| Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti | Impurity | Al | |
| Unit | Total | ||||||||||
| 6063 | 0.2-0.6 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
| 6061 | 0.4-0.8 | 0.8-1.2 | <0.7 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.15 | <0.05 | <0.15 | Surplus |
| 6060 | 0.3-0.6 | 0.35-0.6 | 0.1-0.3 | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.05 | <0.1 | <0.05 | <0.15 | Surplus |
| 6005 | 0.6-0.9 | 0.4-0.6 | 0.35 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.05 | <0.15 | Surplus |
1. Plenty of surface treatments for your choice
2. Strict control for surface finish, very little scratc
3. Accurate mold as well as accurate size
4. Standard alloy composition
5. Both ends of the profiles are very plain and with no burr.
6. OEM Service
7. Design according to the customers' requirements.
