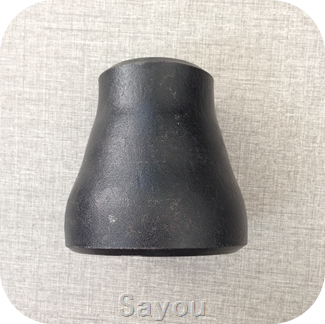

REDUCER

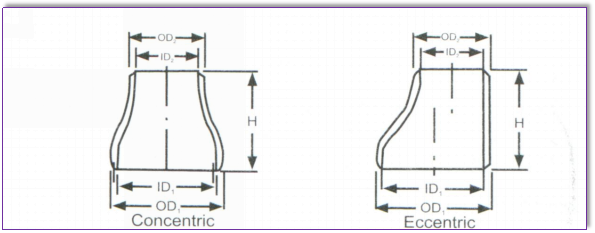

Pipe reducers are applicable to the situation of connecting two pipes with different diameter sizes. Whether to choose the concentric type or eccentric type depends on the space limits of the pipeline design

A) Size: 1/ 2”-48”, DN15-DN1200

B) Standard:

1) ANSI: ASME B16.9, ASME B16.28, MSS-SP-75,

2) DIN: DIN 2616

3) EN: EN 10253-1 EN 10253-2

C) Material:

1) Carbon Steel: ASTM A234 WPB, WPC

2) Stainless Steel: ASTM A403 WP304/ 304L, WP316/ 316L

D) Surface treatment: Transparent oil, rust-proof black oil or hot-dipped galvanizing
